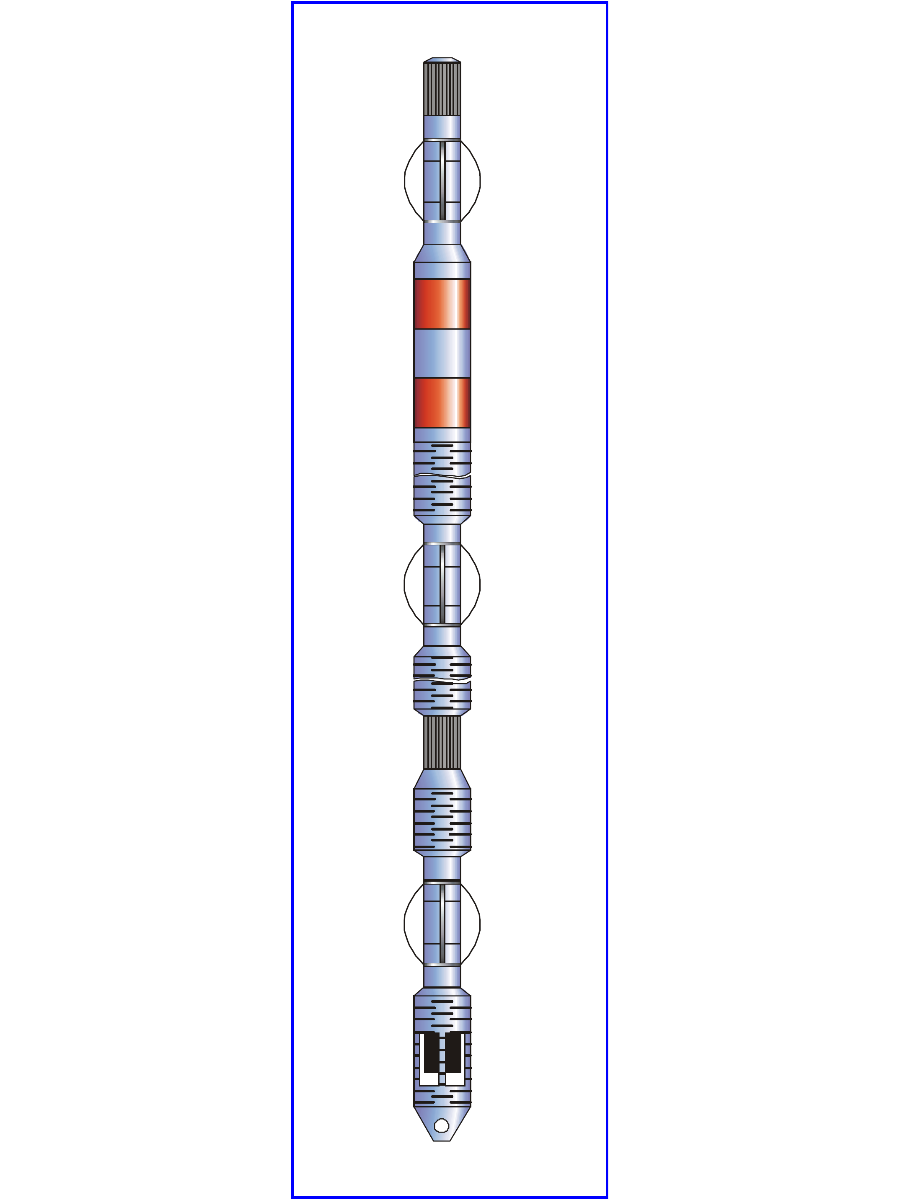

SPAK-6D Downhole sonic log tool

The equipment was development by AO NPP VNIIGIS in cooperation with OOO NPC ECO-Technology Foundation

is designed for investigation of cased- and open-hole sections by kinematic and dynamic parameters of compressional, shear and Lamb-Stonely waves.

Features and Advantages

  • effective arrival segregation for different waves propagating in a borehole;
  • improved accuracy of kinematic and dynamic parameter determination of compressional, shear and Lamb-Stonely waves;
  • tool conveyance to the investigation interval through the drill pipe (inner diameter 90 mm);
  • fast tool demounting for easy transportation.

Specifications

Sonde formulaT 3.2 R1 0.5 R2
Max.operating temperature, oC120
Max.hydrostatic pressure, MPa80
Borehole diameters, mm100-300
Downhole tool dimensions, mm:
diameter (without centralizers)
length

73
up to 5500
Weight, kgup to 80
